Submarine Fenders Reduced Wear And Tear And Compliant With International Maritime Standards
Description

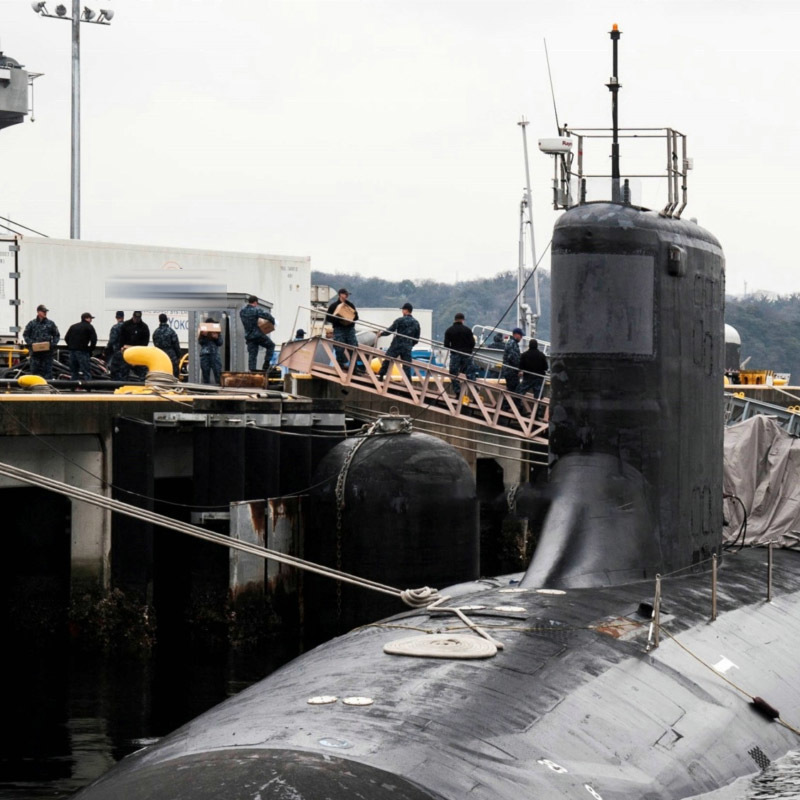

During submarine refits and overhauls, vessels spend extended periods moored at repair yards. Submarine Fenders in this setting must provide continuous hull protection, withstand long-term static loads, and allow for frequent movements of the vessel as work progresses. They are built with durable rubber or hybrid rubber-foam structures, capable of resisting compression over months of use without losing their energy absorption properties.
( Case: At a naval refit facility, a nuclear-powered attack submarine was undergoing a year-long modernization program. The yard installed large panel-type submarine fenders along the entire length of the berth. These fenders not only protected the hull during occasional repositioning but also acted as a buffer against small service craft operating alongside. Midway through the refit, a supply barge accidentally drifted toward the submarine during unloading. The panel fender absorbed the impact, preventing damage to both vessels. Yard officials noted that the fenders required almost no maintenance during the entire refit period, proving their durability under continuous use.)
Specifications
| Material | SBR, NR |
| Size Available | 3.3*10.6M |
| Tensile Strength | => 18 MPA |
| Density | 90+/-5 |
| Colour | Black |
| Application | Submarine, ferry, oil rigs and so on |
| Hardness | 40-70 Shore A |
| Elongation | => 400 |
| Tear Strength | => 400 N/cm |
| Breaking Strength | >310 |
| Chemical Resistance | Fuel A: No deterioration |
| Oil 3: No deterioration |
| Lubricating oil: No deterioration |
| Cutting oil: No deterioration |
| Dilute HCL: No deterioration |
Diameter x
Length | Initial
Internal
Pressure | Ship
Radius | Water
Ratio | Guaranteed
Energy
Absorption | Reaction
Force
at GEA | Hull
Pressure
at GEA | Deflection
at GEA |
| (mm x mm) | (kPa) | (mm) | (%) | (kJ) | (kN) | (kPa) | (%) |
| 1500 x 6100 | 50 | 3000 | 60% | 131 | 562 | 140 | 51% |
| 80 | 186 | 754 | 188 |
| 1700 x 7200 | 50 | 4000 | 65% | 167 | 682 | 137 | 47% |
| 80 | 239 | 918 | 184 |
| 2000 x 6000 | 50 | 4000 | 70% | 135 | 544 | 131 | 41% |
| 80 | 194 | 736 | 177 |
| 2500 x 5500 | 50 | 4500 | 65% | 225 | 769 | 135 | 41% |
| 80 | 322 | 1035 | 182 |
| 2500 x 7700 | 50 | 4500 | 70% | 326 | 1016 | 136 | 41% |
| 80 | 470 | 1368 | 183 |
| 3300 x 6500 | 50 | 4500 | 75% | 307 | 887 | 127 | 35% |
| 80 | 442 | 1203 | 173 |
| 3300 x 10600 | 50 | 5000 | 65% | 1003 | 2137 | 142 | 47% |
| 80 | 1429 | 2863 | 190 |
| 4500 x 9000 | 50 | 5000 | 60% | 1439 | 2401 | 138 | 46% |
| 80 | 2059 | 3228 | 185 |
| 4500 x 12000 | 50 | 6000 | 65% | 1977 | 3198 | 141 | 46% |
| 80 | 2819 | 4277 | 189 |
Characteristics
High Energy Absorption
Designed to dissipate large amounts of kinetic energy during berthing, reducing the risk of hull deformation or structural damage.
Low Reaction Force
Minimizes the force transferred to both the submarine hull and quay wall, ensuring safer docking in various conditions.
Custom Hull Contour Matching
Available in shapes and dimensions tailored to specific submarine classes, ensuring optimal contact and protection.
Corrosion Resistance
Constructed from marine-grade rubber and composite materials that resist saltwater, oil, and chemical degradation.
Applications
Port Harbor Security Barriers
Integrated into underwater security perimeters to absorb impacts from unauthorized submarine intrusions near sensitive port areas.
Submarine Launch Recovery Systems
Used on submarine support vessels or underwater platforms to safely guide and recover unmanned subs (UUVs).
Ice Covered Polar Operations
Specialized fenders for submarines operating under ice sheets, protecting against collisions with ice keels or submerged ridges.
Advantages
Over 30 Years of Manufacturing Expertise
With more than three decades in the marine fender industry, we have developed unmatched knowledge and technical capability in designing and producing high-performance submarine fenders.
Specialized in Submarine Fender Production
Unlike general rubber product manufacturers, we focus on submarine fender technology, ensuring our products meet the unique demands of naval and research vessels.
Proven Global Track Record
Our submarine fenders are in service with naval bases, shipyards, and research institutes across Asia, Europe, the Americas, and the Middle East.
Advanced Engineering Design Capability
In-house engineering team equipped with CAD/CAE tools for precision design, custom hull contour matching, and compliance with PIANC/ISO standards.
FAQ
1. Q: What colors are available?
A: Standard color is black, but we can produce in grey, navy blue, or custom colors upon request.
2. Q: Are your fenders eco-friendly?
A: We use recyclable materials and comply with environmental safety regulations in manufacturing.
3. Q: Do you provide warranty for your fenders?
A: Yes, we offer a standard 12–24 month warranty, depending on the model and application.
4. Q: How can I get a quotation?
A: Simply provide your submarine type, berth details, required dimensions, and quantity, and our sales team will respond with a detailed proposal.
